Hood Vent
Description

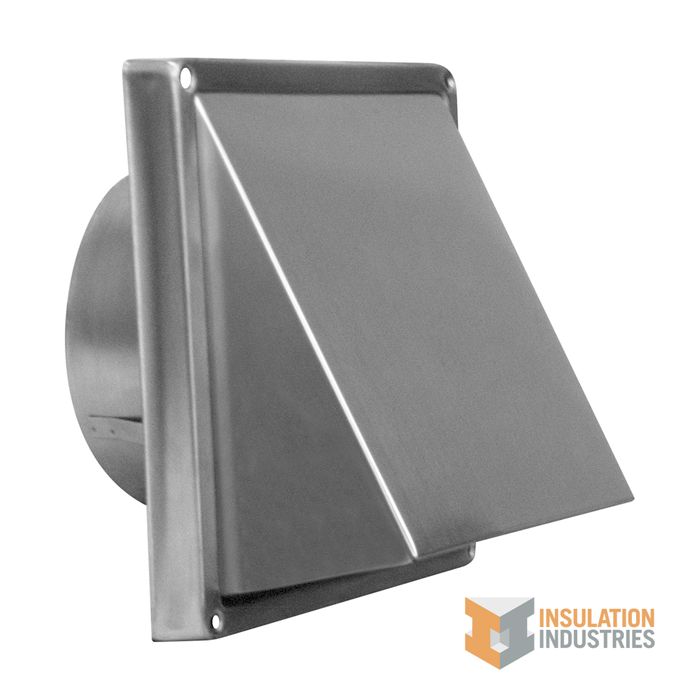

Stainless Steel Hood Vents provide a durable and weather-resistant solution for through-the-wall ventilation. The hood design incorporates an internal gravity flap that allows air to be expelled while helping prevent cold air, pests and vermin from entering the ventilation system when not in use.
Manufactured from 316 Marine Grade Stainless Steel, these hood vents are suitable for applications where durability and resistance to corrosion are important. The angled hood design provides additional protection in areas exposed to heavy rain and snow.
Features
- Made from 316 Marine Grade Stainless Steel
- Available in 100mm, 125mm and 150mm duct sizes
- Internal gravity flap helps prevent cold air, pests and vermin entering when not in use
- Supplied with a cinder mesh insert
- BAL40 compliant when used with the supplied cinder mesh insert
- Angled hood design suitable for areas exposed to heavy rain and snow
- Suitable for through-the-wall ventilation
- Screws and rubber seal included
Available Sizes
| Duct Size | External Dimensions | Rear Spigot Depth |
|---|---|---|
| 100mm | 155mm W x 155mm H x 80mm D | 52mm |
| 125mm | 185mm W x 185mm H x 90mm D | 52mm |
| 150mm | 185mm W x 185mm H x 90mm D | 62mm |
BAL40 Compliance
The hood vent is suitable for use in BAL40 applications when fitted with the supplied cinder mesh insert. The mesh insert is made from 316 Marine Grade Stainless Steel.
Always confirm the ventilation and bushfire requirements applicable to your specific building and installation.
